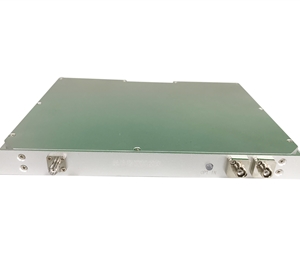

1550nm Suppression Carrier Single Side-band Modulator Module
|
Product description |
ROF-ModBox-CS-SSB-1550 Suppression Carrier Single Sideband Modulation Unit is a highly integrated product of Conquer Photonics with independent intellectual property rights.
The product integrates double-parallel Mach-Zehnder modulator, bias controller, RF driver and other necessary components into a unit, which doesn't only facilitate the user, but also greatly improves the reliability of the MZ intensity modulator. What's more, it can be customized according to user's requirements.
Features
Low insertion loss
High operating bandwidth
lDC 15V
|
Applications |
l Optical fiber sensing system
l Microwave photonics
lTeaching and experimental demonstration system
lSuppress Carrier Single Sideband Modulation to Achieve Wavelength adjustable
Principle diagram
|
|
|
Performance parameters |
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
||||
|
RF modulation signal (user provide ) |
|||||||||
|
Input signal |
|
1 |
|
20 |
GHz |
||||
|
Signal format |
|
sine, single ended |
|
||||||
|
Match impedance |
|
|
50 |
|
Ω |
||||
|
Signal amplitude |
With RF driver |
|
200 |
|
mVp-p |
||||
|
Without RF driver |
|
4 |
|
Vp-p |
|||||
|
Carrier light source parameters (user provided) |
|||||||||
|
Laser type |
DFB light source or Wavelength tunable light source DFB |
||||||||
|
Wavelength |
|
1510 |
|
1560 |
nm |
||||
|
Line-width |
|
- |
|
1 |
MHz |
||||
|
Polarization extinction ratio |
|
|
20 |
- |
dB |
||||
|
Power |
|
|
20 |
100 |
mW |
||||
|
specification parameters |
|||||||||
|
Modulator type |
X-cut double parallel M-Z modulator |
||||||||
|
Modulator bandwidth S21@3dB |
|
16 |
18 |
- |
GHz |
||||
|
Insertion loss of modulator |
|
5 |
6 |
7 |
dB |
||||
|
Chirp |
|
﹣0.1 |
0 |
﹢0.1 |
- |
||||
|
Return loss |
|
﹣45 |
﹣50 |
- |
dB |
||||
|
RF driver bandwidth S21@3dB |
|
15 |
18 |
|
GHz |
||||
|
Bias controller parameters |
|||||||||
|
Automatic feedback bias controller |
Jitter mode |
||||||||
|
Dithering signal frequency |
|
400 |
1000 |
1400 |
Hz |
||||
|
Jitter signal amplitude |
|
10 |
50 |
1000 |
mV |
||||
|
Preset operating point |
|
Lowest point |
|||||||
|
CS-SSB optical output signal |
|||||||||
|
Side-band suppression ratio @1530 nm |
20 |
25 |
- |
dB |
|||||
|
Interface |
|||||||||
|
Optical Connectors |
|
Standard panda type polarization fiber FC/APC |
|||||||
|
Input RF signal interface |
|
SMA（50Ω） |
|||||||
|
Bias controller interface |
|
DB9 |
|||||||
|
Other parameters |
|||||||||
|
Operating temperature |
