850nm nanosecond pulse laser light source
Product description
ROF -PLS series 850nm nanosecond pulsed light source(laser modulator) uses a unique short pulse drive circuit to achieve the narrowest up to 3ns pulse output. In contrast, the use of high stability of the laser and the unique APC (automatic power control) and ATC (automatic temperature control ) Circuit, so that the output power and wavelength has a high degree of stability, and real-time monitoring of light source temperature, energy, and other information. The series of pulsed light sources are mainly used in MOPA structure fiber laser seed source、 spectral analysis、optical fiber sensing, passive device testing.
|
Features |
l The narrowest pulse is up to 3ns
l Operating wavelength:850nm
l Pulse width is tunable
l Pulse repetition frequency is tunable
l Built-in electrical synchronous electrical interface
l Internal trigger and external trigger are optional
l Desktop and module package are optional
l Can be customized according to customer’s requirements
|
Applications |
l laser distance measurement
l Seed light source
l Optical fiber sending
l Passive device testing
|
Performance parameters |
|
Optical Parameters |
||||
|
Parameter index |
Min |
Typ |
Max |
Unit |
|
Central wavelength |
851 |
852 |
853 |
nm |
|
Peak pulse optical power |
50 |
|
|
mW |
|
Spectral line width |
|
1 |
2 |
nm |
|
Pulse width |
3 |
|
100 |
ns |
|
Light pulse repetition frequency |
1 |
|
1000 |
KHz |
|
Optical power stability |
<1 |
% |
||
|
Wavelength stability |
<0.01 |
nm |
||
|
Pulse width adjustment accuracy |
1 |
ns |
||
|
Pulse width adjustment step size |
5 |
ns |
||
|
Re-adjust the step size |
5 |
KHz |
||
|
Output optical isolation |
30 |
dB |
||
|
Optical fiber connector |
FC/PC、FC/APC or user specified |
|||
|
Optical fiber type |
HI 780 or62.5µm MMF |
|||
|
Electric and mechanical parameters |
||
|
Parameter index |
Module |
Desktop |
|
Power supply |
+ 5 V |
AC 220V@50Hz |
|
Trigger mode |
Internal and external trigger are optional |
|
|
External trigger signal |
Peak5V electrical pulse |
|
|
Electrical synchronization signal |
Peak5V electrical pulse |
|
|
Trigger and sync signal interface |
SMA(f) |
|
|
Communication connector |
RS232 |
|
|
Dimensions |
200x120x30 |
320x220x90 |
|
limit conditions |
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
Operating temperature |
Top |
℃ |
0 |
|
50 |
|
Storage temperature |
Tst |
℃ |
-40 |
|
85 |
|
Humidity |
RH |
% |
5 |
|
90 |
|

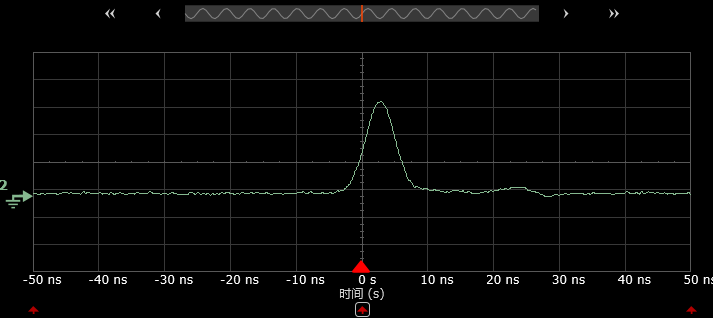

Typical pulse
|
（pulse width ：5ns，rise time ：3ns，fall time ：4ns，repetition frequency ：100K
|

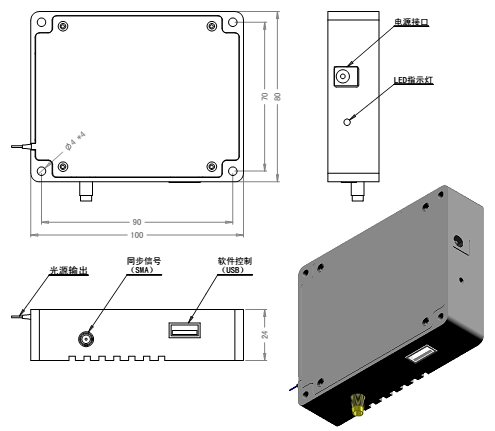

Dimensions |
|
Ordering information （unit ：mm） |
|
ROF |
PLS |
XX |
X |
XX |
XX |
|
|
Pulse light source |
Operating wavelength ： 08---850nm 09---905nm 10---1064nm 13---1310nm 15---1550nm ……… |
Package form： D---desktop M---module |
Narrowest pulse width 03---3ns 05---5ns 10---10ns ……. |
Optical connector ： FP ---FC/PC FA--- FC/APC SP---user specified |
*please contact our seller if you have special requirements
