Description
The R-RF-10-RZ amplifier is a desktop amplifier explicitly designed for RZ code transmission in high-speed optical fiber communication systems. It amplifies tiny high-speed signal levels to a higher level that can drive the modulator and then going Lithium niobate (LiNbO3) electro-optical modulator to work. It has a better gain flatness in the broadband range.
Features
Applications
|
Parameter |
Unit |
Min |
Typ |
Max |
|
|||
|
Transmission rate |
Gb/s |
0.0001 |
|
12.5 |
|
|||
|
Operating frequency range |
Hz |
75K |
10G |
|
|
|||
|
Output amplitude |
V |
3.5 |
|
8 |
|
|||
|
Gain |
dB |
21 |
|
|
|
|||
|
Output Power P1dB |
dBm |
|
21 |
22 |
|
|||
|
Gain change （ripple） |
dB |
|
±1.5 |
|
|
|||
|
Rise / fall time |
ps |
|
22/22 |
|
|
|||
|
Additional jitter |
ps |
|
1.1 |
|
|
|||
|
Input / output impedance |
W |
- |
50 |
- |
|
|||
|
Input voltage amplitude |
V |
|
0.5 |
1 |
|
|||
|
Input voltage standing wave ratio （VSWR） |
75K to 10GHz |
|
|
1.6:1 |
2.25:1 |
|
||
|
Output voltage standing wave ratio （VSWR） |
|
|
2:1 |
3:1 |
|
|||
|
Dimensions （L x W x H） |
mm |
270 x 200 x 70 |
||||||
|
Operating Voltage |
V |
AC 220 |
||||||
|
Radio interface |
|
SMA(f) |
||||||
|
|
|
|
|
|
|
|||
Limit conditions
Parameter
Unit
Min
Typ
Max
Input voltage amplitude
V
1
Operating temperature
℃
-10
60
Storage temperature
℃
-40
85
Humidity
%
5
90

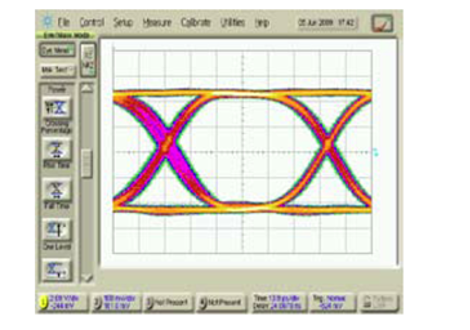

Output eye diagram
ordering information:
R
RF
XX
XX
X
Microwave
amplifier
Operating rate:
10---10Gbps
20---20Gbps
40---40Gbps
Output
characteristics ：
Empty ---
standard
HO--- High
voltage output
RZ --- RZ Signal
amplification
Package form
D--- Desktop
