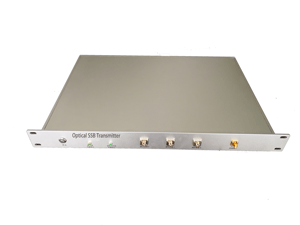

R-ModBox-CS-SSB-1550 Suppression Carrier Single-Sideband Modulation Unit is a highly integrated photoelectric product with independent intellectual property rights.
The product integrates Mach-Zehnder double parallel modulator, bias controller, RF driver, And other necessary components into a unit, which doesn't only facilitate the user, but also dramatically improves the MZ intensity's reliability modulator. What's more, that can customize it according to the user's requirements.
Fatures：
Low insertion loss
High operating bandwidth
AC220V
Applications：
Optical fiber sensing system
Microwave photonics
Teaching and experimental demonstration system
Suppress Carrier Single Sideband Modulation to Achieve Wavelength adjustable

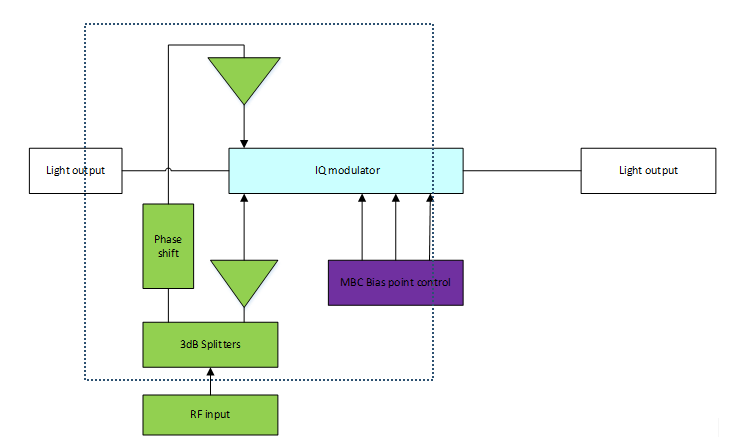

Principle diagram
|
Performance parameters |
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
||||
|
RF modulation signal (user provide ) |
|||||||||
|
Input signal |
|
1 |
|
20 |
GHz |
||||
|
Signal format |
|
sine, single ended |
|
||||||
|
Match impedance |
|
|
50 |
|
Ω |
||||
|
Signal amplitude |
|
|
200 |
|
mVp-p |
||||
|
Carrier light source parameters (user provided) |
|||||||||
|
Laser type |
DFB light source or Wavelength tunable light source DFB |
||||||||
|
Wavelength |
|
1510 |
|
1560 |
nm |
||||
|
Line-width |
|
- |
|
1 |
MHz |
||||
|
Polarization extinction ratio |
|
|
20 |
- |
dB |
||||
|
Power |
|
|
10 |
100 |
mW |
||||
|
specification parameters |
|||||||||
|
Modulator type |
X-cut double parallel M-Z modulator |
||||||||
|
Modulator bandwidth S21@3dB |
|
16 |
18 |
- |
GHz |
||||
|
Insertion loss |
|
5 |
6 |
7 |
dB |
||||
|
Chirp |
|
﹣0.1 |
0 |
﹢0.1 |
- |
||||
|
Return loss |
|
﹣45 |
﹣50 |
- |
dB |
||||
|
RF driver bandwidth S21@3dB |
|
15 |
18 |
|
GHz |
||||
|
Bias controller parameters |
|||||||||
|
Automatic feedback bias controller |
Jitter mode |
||||||||
|
Dithering signal frequency |
|
400 |
1000 |
1400 |
Hz |
||||
|
Jitter signal amplitude |
|
10 |
50 |
1000 |
mV |
||||
|
Preset operating point |
|
Lowest point |
|||||||
|
CS-SSB optical output signal |
|||||||||
|
Side-band suppression ratio @1530 nm |
30 |
35 |
- |
dB |
|||||
|
Interface |
|||||||||
|
Optical Connectors |
|
Standard panda type polarization fiber FC/APC |
|||||||
|
Input RF signal interface |
|
SMA（50Ω） |
|||||||
|
Bias controller interface |
|
USB |
|||||||
|
Other parameters |
|||||||||
|
Operating temperature |
|
+15 |
- |
+35 |
℃ |
||||
|
Storage temperature |
|
-40 |
- |
+75 |
℃ |
||||
|
Power supply |
|
110 |
- |
240 |
V |
||||
|
50 |
- |
60 |
Hz |
||||||
|
Equipment Chassis Size |
|
19”2U |
|||||||
|
Equipment weight |
|
- |
3 |
- |
Kg |
||||

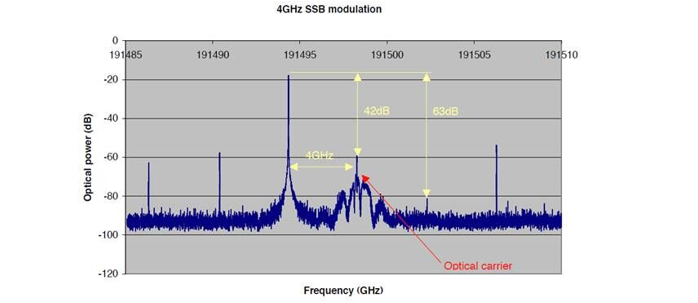

Test results ：
ordering information：
|
R |
AMBOX |
XX |
