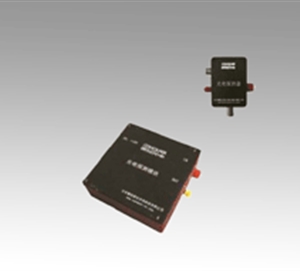

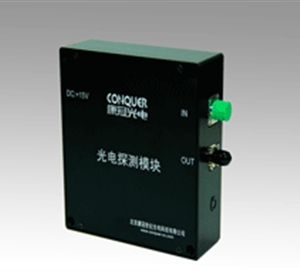

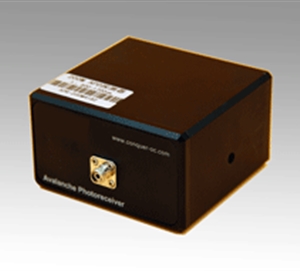

ROF-PR-200M series photodetector integrates high-speed PIN detector and low noise amplifier, fiber or free space coupling, SMA connector output, with high gain, high sensitivity, gain flat and other characteristics, mainly used for analog optical signal reception and fiber optic sensing systems.
product feature：
Spectral range ：320-1000、850-1650nm
3dB bandwidth 200MHz
Low noise
High gain
Optical fiber space coupling input optional
Application：
Weak signal detection
Heterodyne detection
performance parameters：
|
Type Parameter |
ROF-PR-200M-A |
ROF-PR-200M-B |
||
|
Spectral response range |
850~1650nm |
320~1000nm |
||
|
Material type |
InGaAs |
Si |
||
|
Light input |
Optical fiber |
Free space |
Optical fiber |
Free space |
|
Photosensitive surface diameter |
- |
75um |
- |
200um |
|
-3dB bandwidth |
200MHz |
200MHz |
||
|
Rise time |
1.5ns |
1.5ns |
||
|
Responsiveness |
0.9A/W@1550nm |
0.5A/W@700nm |
||
|
Gain |
1.4×104V/W |
0.7×104V/W |
||
|
Min detection power |
-39dBm |
-36dBm |
||
|
Noise equivalent power |
10pw/√Hz |
20pw/√Hz |
||
|
Saturation optical power |
320µW |
640µW |
||
|
Operating voltage |
DC ±15V |
|||
|
Operating circuit |
80mA |
|||
|
Input connector |
FC / Free space |
|||
|
Output connector |
SMA(f) |
|||
|
Output impedance |
50Ω |
|||
|
Output coupling method |
DC |
|||
|
Dimensions |
76.0 × 72.6 × 44.0 |
|||
order information：
|
ROF |
PR |
200M |
X |
XX |
|
|
Photoreceiver
|
-3dBbandwidth： 200MHz |
Operating wavelength： A---850~1650nm B---320~1000nm |
Input type FC ----optical fiber coupling FS ----Free space |
*please contact our seller if you have special requirements
Limit conditions:
|
参数 |
符号 |
单位 |
最小值 |
典型值 |
最大值 |
|
Input optical power |
Pin |
mW |
|
|
10 |
|
Operating Voltage |
Vop |
V |
±13.5 |
±15 |
±16.5 |
|
Operating temperature |
Top |
ºC |
-10 |
|
60 |
|
Storage temperature |
Tst |
ºC |
-40 |
|
85 |
|
humidity |
RH |
% |
5 |
|
90 |
