Description
The HHL-8500-CW-1n transmitter adopts an 8.5um QCL laser, CW, or pulse operation mode. Pulse width range: 1ns-200ns, repetition frequency is up to 300MHz. It can transmit 155Mbps-622Mbps (OC-3, oc-12) bitstreams. Differential input, minimum input 200mVp-p. Dual power supply (+ 5V, + 12V). Laser temperature control range: 15 ° C-28 ° C (Customizing the Configuration Parameters). The average output power>250 mW. Integrated thermal protection, over-voltage protection, over-current protection, reverse power supply protection. They can adjust the threshold current, optical power, extinction ratio, and swing amplitude of the QCL laser. Small size, low power consumption, and high speed are easy to connect and use. It is the fastest mid-infrared emission Transmitter in the world.
Features
The 8.5um FP QCL HHL mid infrared laser is used.
The installation mode is flexible.
CW or pulse operation mode.
The minimum pulse width is 1ns and the maximum repetition frequency>300MHz or bit rate 155Mbps-622Mbps.
The Transmitter accepts minimum 200mVp-p differential data input signals .compatible with CML, LVDS, PECL and other digital signal standards.
Integrated QCL temperature control.
Miniaturized structure:80mm*80mm*85mm.(include heat sink assembly).
The average output optical power>250mW.
+ 5V, + 12V dual power supply, low power consumption.
Comprehensive protection function.
Customizing the Configuration Parameters.
Application
Free-space optical communication
Mid infrared spectrum analysis
Mid infrared Gas detector
Mid infrared imaging
Mid infrared radar
Mid infrared medica

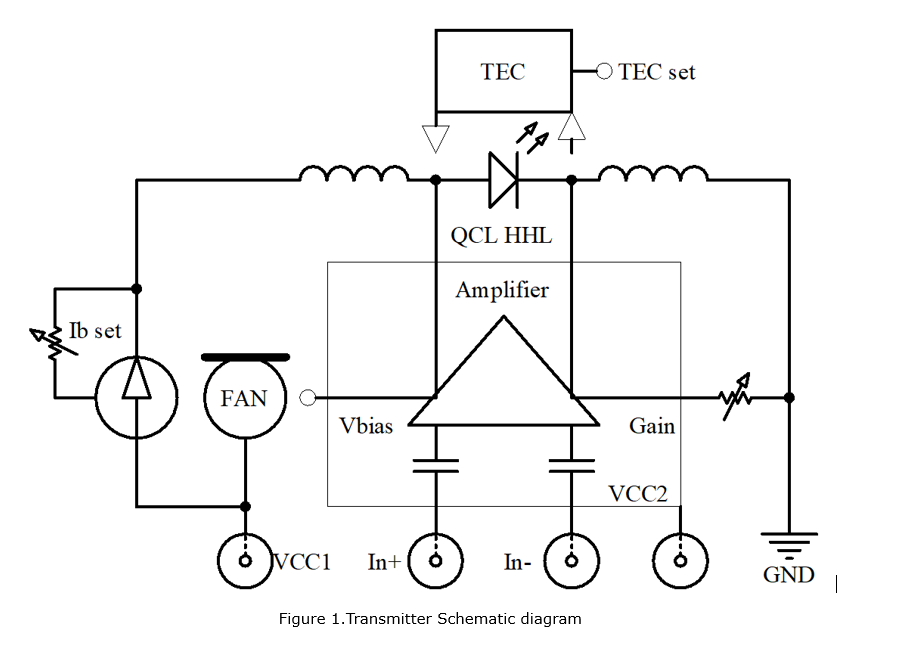

Schematic diagram
Absolute Maximum Ratings
|
Parameter |
Symbol |
Unit |
Min |
Max |
|
Storage Temperature Range |
Ts |
oC |
-40 |
85 |
|
Relative Humidity |
RH |
0 |
95 |
|
|
Supply Voltage(1) |
Vcc1 |
0 |
15 |
|
|
Supply Voltage(2) |
Vcc2 |
0 |
5.5 |
Recommended Operating Conditions
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Note |
|
Operating Case Temperature Range |
Tc |
oC |
0 |
25 |
50 |
|
|
Power Supply Voltage(1) |
Vcc1 |
V |
10 |
12 |
15 |
|
|
Power Supply Voltage(2) |
Vcc2 |
V |
4.7 |
5 |
5.3 |
|
|
Bit Rate |
BR |
Mb/s |
155 |
500 |
622 |
CW |
|
Pulse width |
PW |
ns |
1 |
|
200 |
CW、Pulse |
|
pulse repetition frequency |
PRF |
MHz |
0 |
|
300 |
CW、Pulse |
Electrical Characteristics
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Note |
||||||
|
Supply Voltage(1) |
Vcc1 |
V |
10 |
12 |
15 |
|
||||||
|
Supply Current(1) |
Icc1 |
mA |
|
900 |
1000 |
|
||||||
|
Supply Voltage(2) |
Vcc2 |
V |
3.3 |
5 |
5.3 |
|
||||||
|
Supply Current(2) |
Icc2 |
mA |
|
1500 |
3000 |
|
||||||
|
QCL temperature range |
|
°C |
16 |
20 |
28 |
|
||||||
|
run-up time |
|
|
s |
|
20 |
50 |
||||||
|
Input Differential Impedance |
RIN |
Ω |
80 |
100 |
120 |
|
||||||
|
Differential Data Input Swing |
VIN |
mVp-p |
200 |
|
2400 |
|
||||||
Optical Characteristics
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Note |
|
Nominal Wavelength |
λTRP |
nm |
8474 |
8500 |
8583 |
|
|
Optical Output Power |
Pav |
mW |
|
250 |
300 |
|
|
Extinction Ratio |
ER |
dB |
|
12 |
|
|
|
Optical rise time |
|
ps |
|
500 |
|
20%-80% |
|
Optical fall time |
|
ps |
|
500 |
|
