Carrier suppression single sideband modulation module realizes the conversion of RF microwave signal to optical domain, and realizes input optical carrier and sideband suppression, and outputs + 1 or - 1 order sideband.

major function：

1) Channel number: module channel number is 1 channel;
2) Fiber type: input fiber is polarization maintaining fiber, output fiber is single-mode fiber;
3) Working wavelength: the wavelength range of modulator is 1525 ~ 1565nm, covering 1550.12nm;
4) Maximum optical input power: the maximum allowable input power of modulator is 17dbm, and that of bias control is 17dbm;

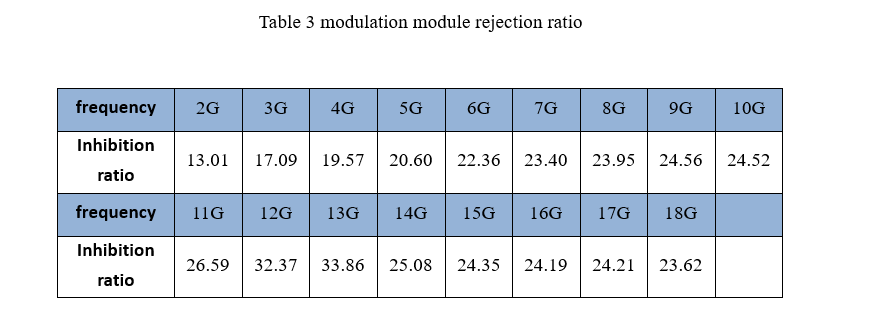

5) RF input frequency: the input frequency range is reflected in the following carrier suppression sideband ratio.

performance testing：

Note: test conditions
1) Laser linewidth: 100kHz;
2) Laser wavelength: 1550.22nm;
3) Laser output power: 12dbm;
4) RF input power: 12dbm.

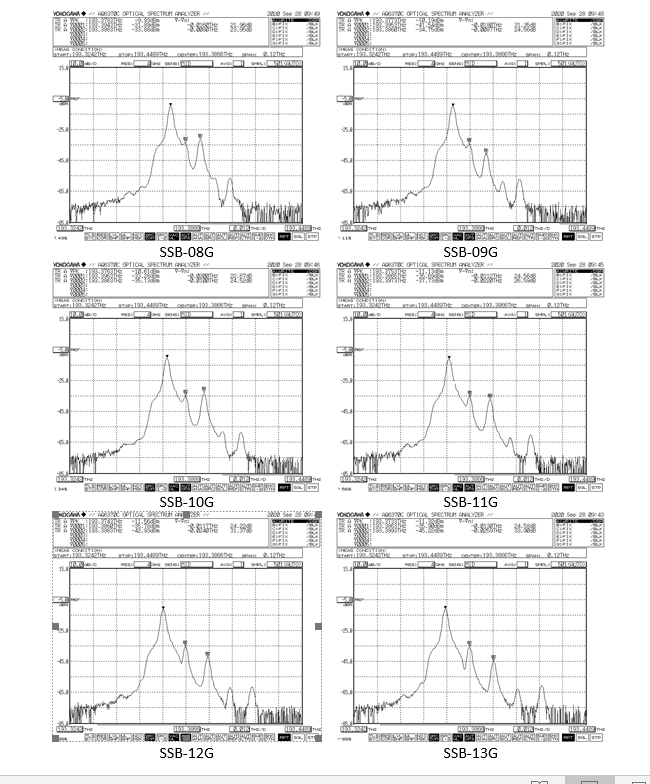

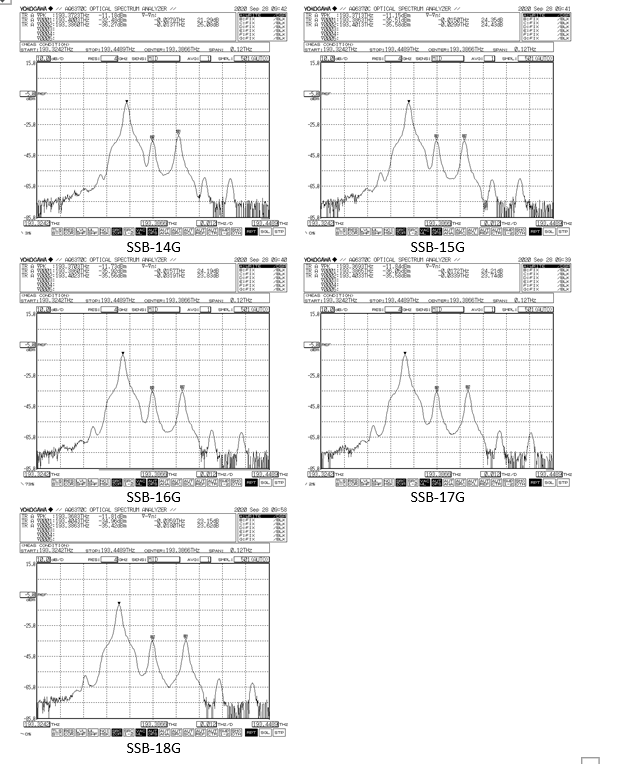

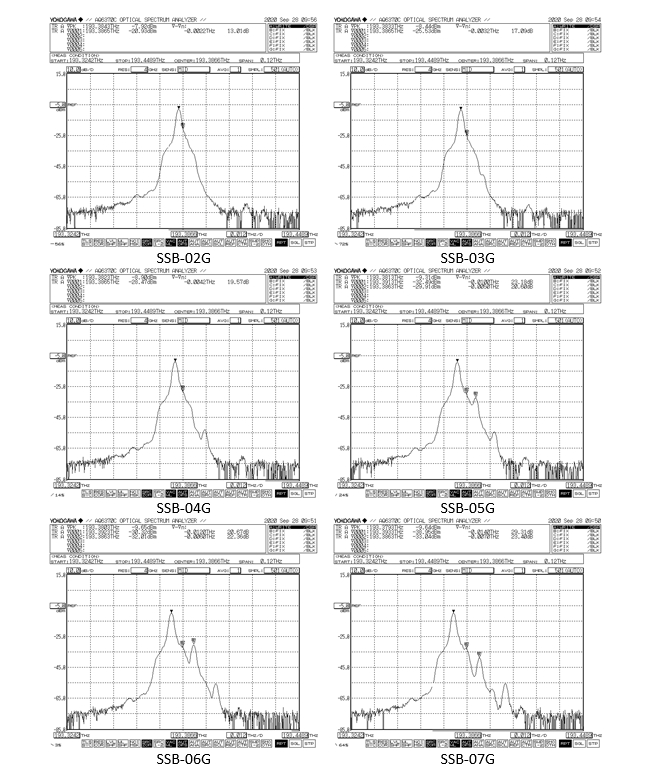

Typical test chart：

The index of modulation module meets the requirements of lithium niobate electro-optic modulation module product specification
