Description:
Rof-tls-f high-speed tunable laser source adopts high-performance DFB laser, with continuous wavelength tuning, tuning range > 40GHz, and full-cycle tuning speed greater than 10kHz (wavelength scanning in the form of a sawtooth wave). It has high output power (10MW), narrow linewidth, high wavelength accuracy, and adequate power stability. It can realize the external synchronous trigger scanning tuning control of the instrument, mainly optical fiber sensing, microwave photon system, and other fields.
Feature:
Application:
Performance parameters：
parameters
symbol
min
typical
max
unit
wavelength
l
1528
1610
nm
wavelength tuning range
40
GHz
Tuning form
continuously tunable
Wavelength tuning speed (saw tooth wave)
10
kHz
Wavelength accuracy
-2.5
2.5
GHz
Synchronous signal voltage amplitude
5
Vpp
Output optical power
Po
-
7
10
dBm
3dB spectral width
Dl*
3
10
MHz
Edge mode rejection ratio
SMSR
40
50
dB
polarization extinction ratio
PEX
20
dB
Relative noise intensity
RIN
-145
-135
dB/Hz
Output isolation
ISO
30
35
dB
specification
modular
Outline size L x W x H
110×70×
24 mm
Power requirements
DC
±5V
Output optical fiber
PMF
Optical connector
FC/PC FC/APC or user specific
Limint parameters:
parameter
Symbol
unit
min
typical
max
working temperature
Top
ºC
-5
55
Storage temperature
Tst
ºC
-40
85
humidity
RH
%
5
90

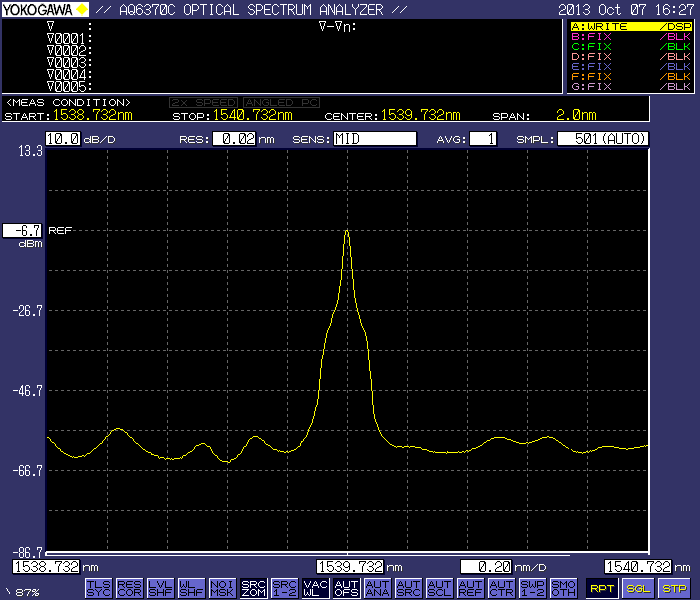

Typical spectrum:
Order information:
ROF
TLS-F
XX
XX
XX
XX
XX
High speed tunable laser source
wavelength：
encapsulation：
power：
pigtail：
Optical interface：
15-1550nm
M---modular
05---5mW
P---PMF
FP---FC/PC
………..
S---SMF
FA---FC/APC
SP---user specific
Order example:
Product No.: rof-tls-f-15-m-05-p-fp
Description: C band high speed tunable laser source with working wavelength of 1550nm, module package, output power of 5MW, polarization maintaining fiber, FC / PC connector
*Please contact our sales staff if you have special index requirements
