L-band EDFA amplifier system technical scheme
April 14,2021 | News    Browsing volume:725


L-band EDFA amplifier system technical scheme

1. Erbium-doped fiber

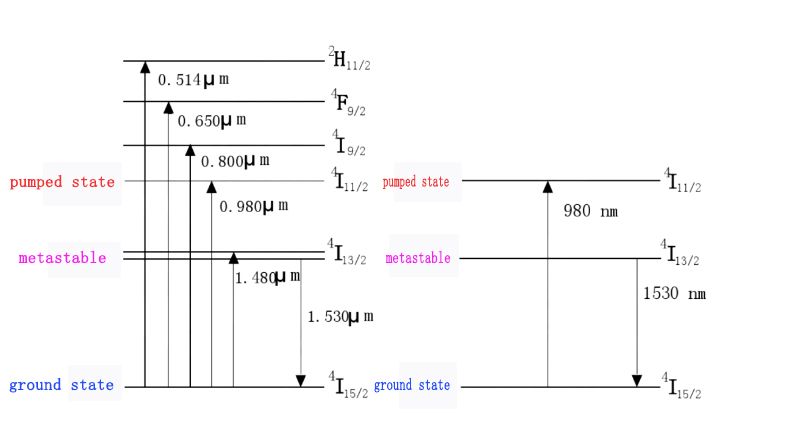

Erbium is a rare earth element with an atomic number of 68 and an atomic weight of 167.3. The erbium ion's electronic energy level is shown in the figure, and the transition from the lower energy level to the upper energy level corresponds to the absorption process of light. The change from the upper energy level to the lower energy level corresponds to the light emission process.




2. EDFA principle

EDFA uses erbium ion-doped fiber as the gain medium, which produces population inversion under pump light. It realizes stimulated radiation amplification under the induction of signal light.

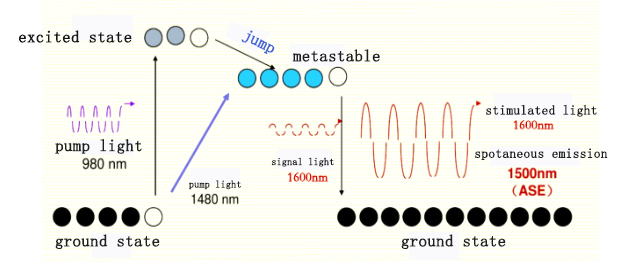

Erbium ions have three energy levels. They are at the lowest energy level, E1, when they are not excited by any light. When the fiber is continuously excited by the pump light source laser, the particles in the ground state gain energy and transition to a higher energy level. Such as the transition from E1 to E3, because the particle is unstable at the high energy level of E3, it will quickly fall to the metastable state E2 in a non-radiative transition process. At this energy level, the particles have a relatively long survival life. Due to the continuous excitation of the pump light source, the number of particles at the E2 energy level will continue to increase, and the number of particles at the E1 energy level will increase. In this way, the population inversion distribution is realized in the erbium-doped fiber, and the conditions for learning optical amplification are available.

When the input signal photon energy E=hf is precisely equal to the energy level difference between E2 and E1, E2-E1=hf, the particles in the metastable state will transition to the ground state E1 in the form of stimulated radiation. The radiation and the input The photons in the signal are identical to the photons, thus significantly increasing the photons' number, making the input optical signal become a strong output optical signal in the erbium-doped fiber, realizing the direct amplification of the optical signal.

2. System diagram and basic device introduction

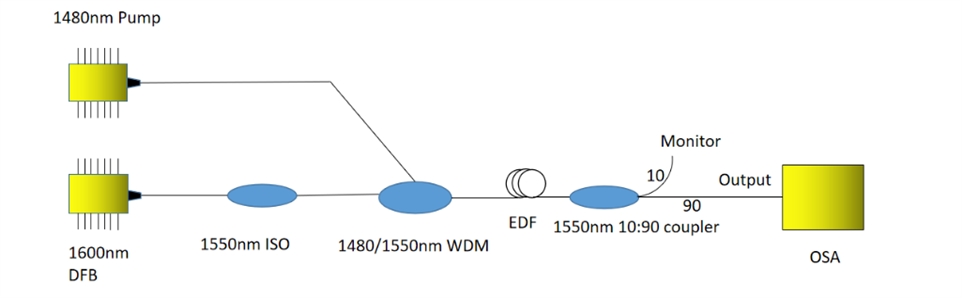

2.1. The schematic diagram of the L-band optical fiber amplifier system is as follows:

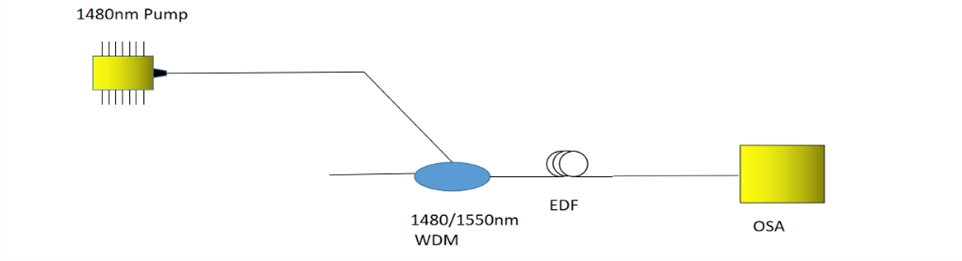

2.2. The schematic diagram of the ASE light source system for spontaneous emission of erbium-doped fiber is as follows:

Device introduction

1.ROF -EDFA -HP High Power Erbium Doped Fiber Amplifier

Parameter

Unit

Min

Typ

 Max

Operating wavelength range

nm

1525

1565

Input signal power range

dBm

-5

10

Saturation output optical power

dBm

37

Saturation output optical power stability

dB

0.3

Noise index @ input 0dBm

dB

5.5

6.0

Input optical isolation

dB

30

Output optical isolation

dB

30

Input return loss

dB

40

Output return loss

dB

40

Polarization dependent gain

dB

0.3

0.5

Polarization mode dispersion

ps

0.3

Input pump leak

dBm

-30

Output pump leak

dBm

-30

Operating voltage

V( AC )

80

240

Fiber type

SMF-28

Output interface

FC/APC

Communication interface

RS232

Package size

Module

mm

483×385×88(2U rack)

Desktop

mm

150×125×35

2.ROF -EDFA -B erbium-doped fiber power amplifier

Parameter

Unit

Min

Typ

Max

Operating wavelength range

nm

1525

1565

Output signal power range

dBm

-10

Small signal gain

dB

30

35

Saturation optical output range *

dBm

17/20/23

Noise figure **

dB

5.0

5.5

Input isolation

dB

30

Output isolation

dB

30

Polarization independent gain

dB

0.3

0.5

Polarization mode dispersion

ps
