ensure the regular operation of the equipment and the equipment and personnel's safety during use, please read this document before using the equipment. The company is not responsible for any equipment damage, personal injury, and other losses caused by the equipment's improper use.
Description

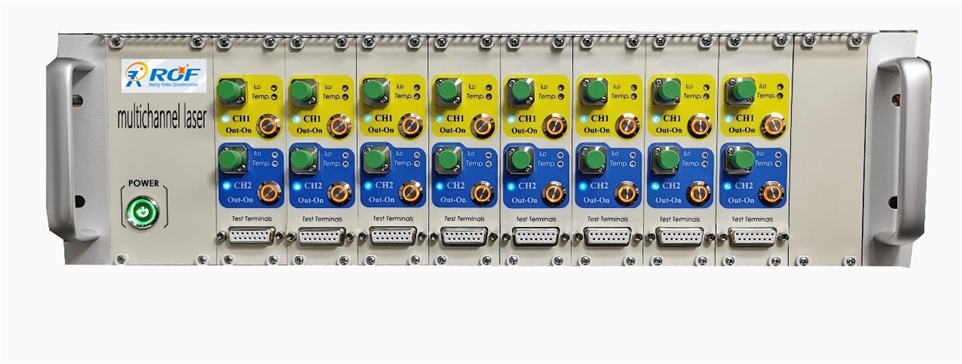

multi-channel laser is specially designed for laboratory and company quality inspection. It can provide 16 channel laser output at the same time. An independent power supply controls the channel, and the wavelength and power can be adjusted. The chassis adopts standard slot type chassis, and the company provides spare modules to facilitate equipment maintenance, with high wavelength accuracy, high-cost performance, and good reliability.
Technical index
|
Parameters |
Index |
|
Channels |
16 |
|
Channel wavelength |
CH01:1545.52nm CH02：1546.16nm |
|
Adjustable wavelength range |
＞±1nm |
|
Signal channel output power |
＞0dBm |
|
Fiber type |
Signal mode |
|
Type of optical connector |
FC/APC |
|
Supply voltage |
200V~240V AC |
|
Operating temperature |
5~40℃ |

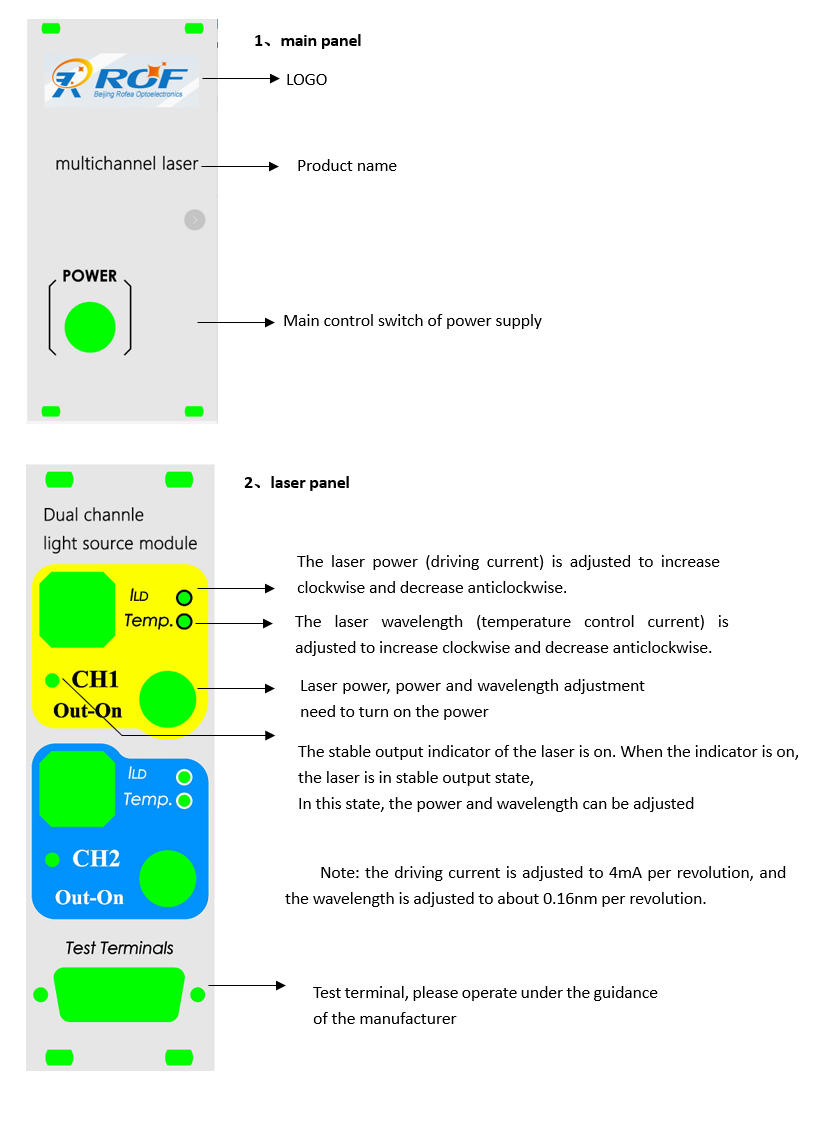

Panel description
Test record
Test and measurement record of multichannel
optical device
Ta=25℃ 2021-2-2
Module serial number
Output power
Output wavelength
Current proportional voltage
Equivalent driving current
Wavelength proportional voltage
M1
CH1
1.810mW
1545.517nm
0.618V
30.9mA
0.762V
CH2
1.839mW
1546.156nm
0.8938V
44.7mA
0.744V
M2
CH3
1.319mW
1546.806nm
0.470V
23.5mA
0.628V
CH4
1.532mW
1547.440nm
O.423V
21.15mA
0.652V
M3
CH5
1.384mW
1548.081nm
0.368V
18.4mA
0.646V
CH6
1.429mW
1548.722nm
0.397V
19.85mA
0.664V
M4
CH7
1.639mW
1549.360nm
0.548V
27.4mA
0.863V
CH8
1.498mW
1550.005nm
0.575V
28.75mA
0.755V
M5
CH9
1.426mW
1550.639nm
0.433V
21.65mA
0.680V
CH10
1.405mW
1551.278nm
0.450V
27.5mA
0.660V
M6
CH11
1.404mW
1551.918nm
0.373V
18.65mA
0.638V
CH12
1.408mW
1552.561nm
0.473V
23.65mA
0.619V
M7
CH13
1.500mW
1553.218nm
0.781V
39.05mA
0.823V
CH14
1.481mW
1553.837nm
0.728V
36.4mA
0.758V
M8
CH15
1.570mW
1554.480nm
0.760V
38mA
0.798V
CH16
1.264mW
1555.118nm
0.614V
30.7mA
0.808V
Notices rules
1.During the equipment's working process, the input power supply voltage shall be kept stable as far as possible, and the equipment grounding terminal shall be connected. The power supply voltage stabilizing device can be installed to prolong the service life of the equipment.
2. When the equipment is turned on, the power line should be connected first, and then the laser master switch should be turned on. When the equipment is turned off, the laser master switch should be turned off first.
3. Pay attention to the cleaning of the fiber connector in the process of use to not affect the laser's output performance.
4. The equipment shall be kept dry and clean, and the external surface of the instrument shall be protected to avoid being scratched by hard objects. In a high-temperature season or humid climate, attention should be paid to ventilation and heat dissipation.
After-sales services
After-sales service address and contact information
Beijing rofea optoeletronics
NO. 3, Jinxing West Rd, Daxing District, Beijing
sales@rof-oc.com (or contact Regional Sales Manager)
